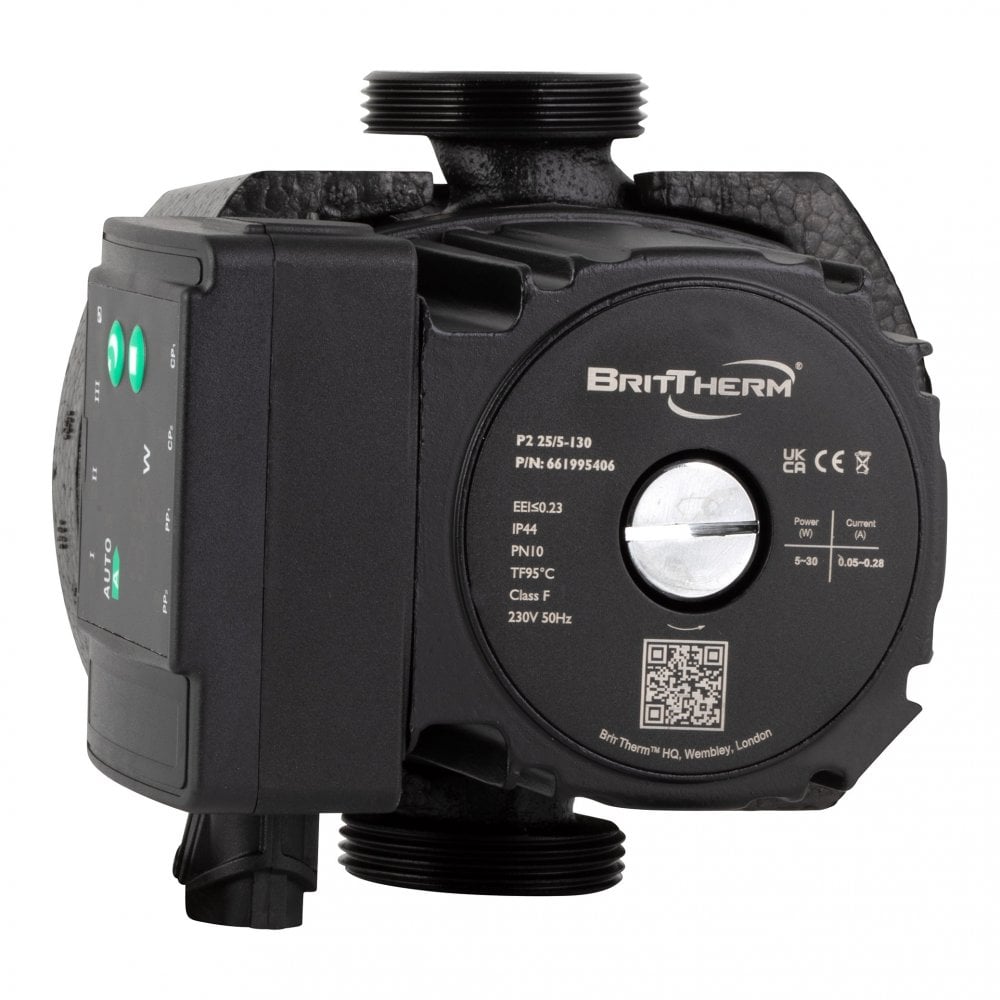

BritTherm Automatic Сirculator Pump P2 Series P2 25/5-130 (661995406)

The BritTherm P2 25/5-130 Circulator Pump is a high-performance 25mm pump with 5-metre head and 130mm port centres, designed for adaptable and energy-efficient heating circulation. Featuring nine automatic operation modes, including AUTO, constant and proportional pressure modes, plus manual speeds, this pump ensures optimal comfort and reduced energy usage in a wide variety of heating systems.

The BritTherm P2 25/5-130 circulator pump offers exceptional versatility and efficiency for heating systems requiring a 5-metre head and 25mm connections spaced at 130mm. With nine built-in modes, the pump intelligently adapts to system demands. AUTO Mode covers most heating systems, while two constant pressure modes (CP1 and CP2) maintain pressure regardless of flow. Two proportional pressure modes (PP1 and PP2) dynamically adjust pump operation based on system pressure changes.

Three fixed manual speeds provide traditional control options. The Night Operating Mode reduces power consumption to just 5 watts while maintaining heating performance, making it ideal for energy-conscious installations. Electrical and thermal protection safeguards the pump from external faults, ensuring long-lasting reliability.

Features & Benefits:
✅ Nine automatic modes for tailored heating performance
✅ AUTO Mode suitable for 80% of heating systems
✅ Two constant pressure modes for stable pressure control
✅ Two proportional pressure modes for adaptive pump speed
✅ Three fixed speeds for manual power adjustment
✅ Night mode cuts energy use to 5 watts
✅ 25mm connections with 130mm port centres
✅ Electrical and thermal protection for enhanced durability

• Programs = 9 Control Programs
• Maximum Head (Meters) = 5
• Flow (m3/h) = 3.1
• Power = 5~30
• Connection Size = 1 ½”
• Energy Efficiency Index Rating (EEI) = EEI≤ 0.18
• Maximum System Pressure (KPA) = 10 Bar
• Protection Class = IP44
• Temperature Class = TF 95°C
• Insulation Class = F
• Material = Cast Iron
• Supplied With (Loose in Box) = A set of threaded connections designed for fastening to pipes, high-temperature rubber gaskets, electrical cable 1.3 m long, insulation foam, data sheet and warranty instructions.
