BritTherm Automatic Сirculator Pump P3 Series P3 25/4-180 (661995503)

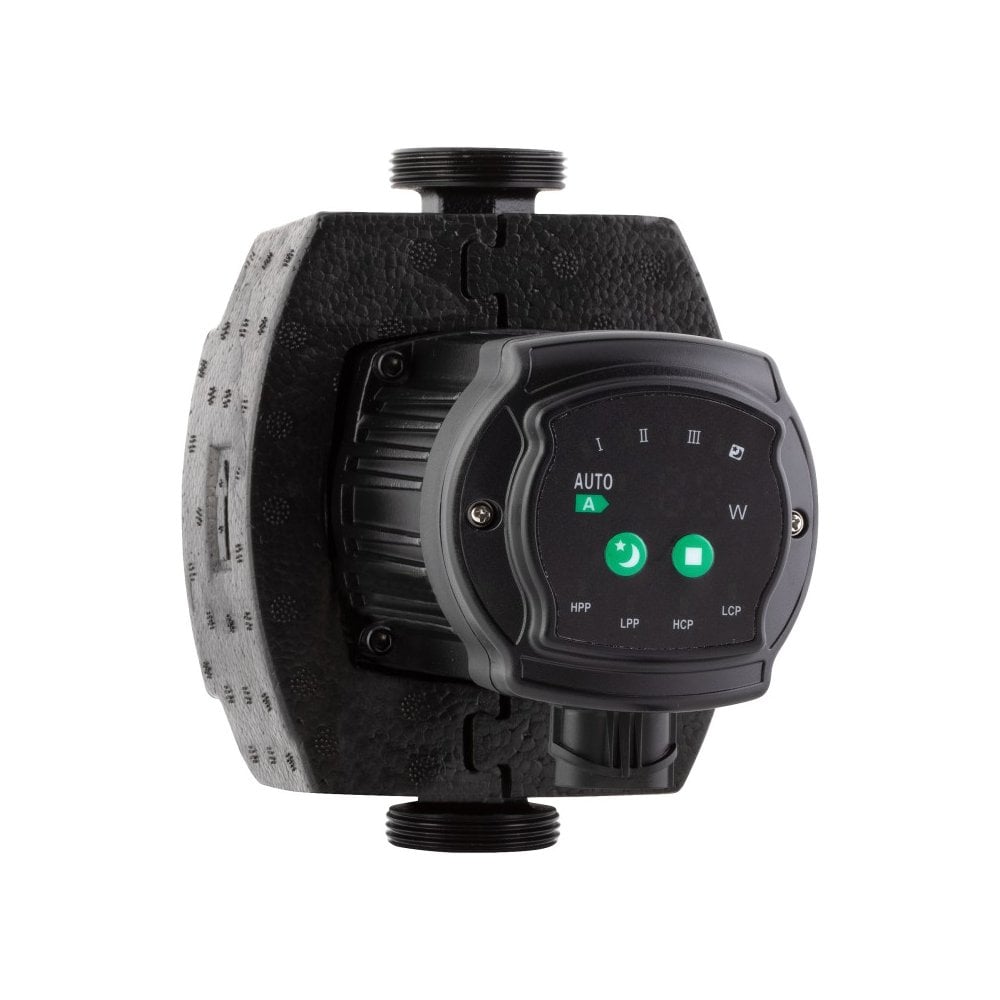

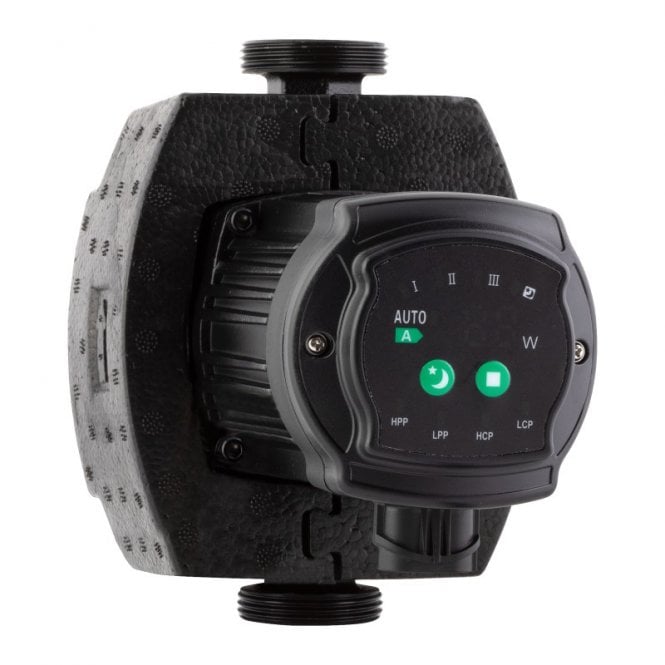

The BritTherm P3 25/4-180 circulator pump is designed to deliver exceptional heating system performance with nine automatic operation modes. Its compact design and accessible control panel make installation simple, even in confined spaces, while its advanced modes ensure energy-efficient and reliable operation for any domestic heating system.

The BritTherm Automatic Circulator Pump P3 Series P3 25/4-180 offers advanced functionality tailored to domestic heating needs. With nine built-in automatic modes, this pump adjusts intelligently to the system’s requirements, balancing comfort and energy savings.

The pump’s AUTO mode activates with a single button press, optimising operation for the majority of heating systems. It features two constant pressure modes (CP1 and CP2), which maintain steady pressure regardless of flow changes, and two proportional pressure modes (PP1 and PP2), which respond dynamically to pressure fluctuations in proportion to flow rate.

For manual control, three fixed speeds can be selected, allowing full range use of the pump’s power. The automatic night power reduction function cuts energy consumption to just 5 watts during off-peak periods, ensuring efficient operation without compromising heating quality.

Electrical and thermal protection systems safeguard the pump from damage caused by external factors, enhancing its durability and reliability.

Features & Benefits:
✅ Compatible with 25mm domestic heating systems
✅ Nine automatic operation modes for adaptable performance
✅ Easy-to-use AUTO mode for intelligent control
✅ Two constant pressure modes (CP1 & CP2) for consistent pressure
✅ Two proportional pressure modes (PP1 & PP2) for responsive adjustment
✅ Three fixed speeds for manual power selection
✅ Night mode reduces power use to 5 watts
✅ Electrical and thermal protection for long-lasting reliability
✅ Compact design with control panel suited for concealed installation

• Programs = 9 Control Programs
• Maximum Head (Meters) = 4
• Flow (m3/h) = 2.6
• Power = 5~22
• Connection Size = 1 ½”
• Energy Efficiency Index Rating (EEI) = EEI≤ 0.17
• Maximum System Pressure (KPA) = 10 Bar
• Protection Class = IP44
• Temperature Class = TF 95°C
• Insulation Class = F
• Material = Cast Iron
• Supplied With (Loose in Box) = A set of threaded connections designed for fastening to pipes, high-temperature rubber gaskets, electrical cable 1.3 m long, insulation foam, data sheet and warranty instructions.
